PeerPal App Walkthrough (Instructors)#

Instructor Homepage#

The homepage is the first page seen by the instructor after launching the PeerPal application from Canvas.

_images/instructor_app_walkthrough_1.png _images/instructor_app_walkthrough_2.png

1. Nav Bar: The Nav Bar consists of clickable links to other pages in the PeerPal application (explained below).

2. Enabled Assignments: The Enabled Assignments section displays all assignments from Canvas which have been configured for peer grading in PeerPal. Each assignment can be clicked to display assignment checklists.

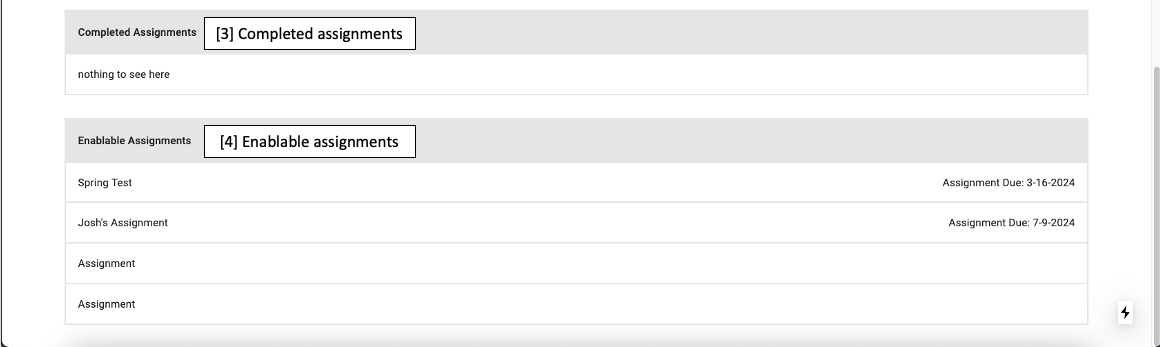

3. Completed Assignments: This section displays all assignments in which the peer grading process has been completed. Each assignment can be clicked to display assignment checklists.

4. Enablable Assignments: This section displays all assignments in Canvas which haven’t been (but can be) enabled for peer grading.

In Progress Assignments#

_images/instructor_app_walkthrough_3.png

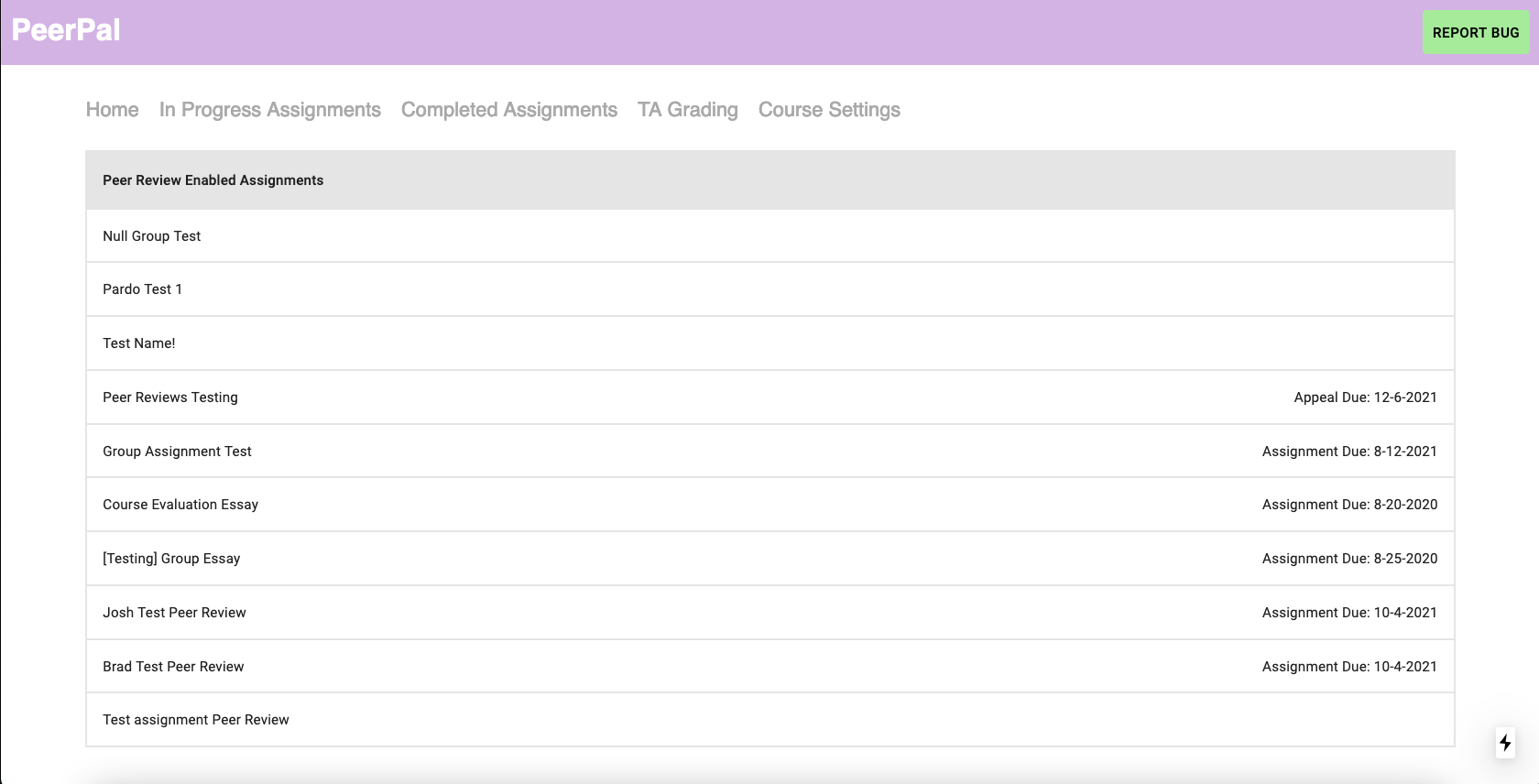

The “In Progress Assignments” page is accessible from the Nav Bar. Similar to the Enabled Assignments section on the homepage, it displays assignments which have been configured for peer grading in PeerPal.

Completed Assignments#

_images/instructor_app_walkthrough_4.png

The “Completed Assignments” page is accessible from the Nav Bar. Similar to the Completed Assignments section on the homepage, it displays assignments in which the Peer Grading process has been completed.

Assignment Checklist#

Assignment checklists are viewable after clicking on any assignment listed in the sections/pages described above.

_images/instructor_app_walkthrough_5.png

The assignment checklist serves as a method of tracking the progress of peer grading assignments as well as addressing any action items needed to continue the peer grading process.

Initialize Peer Review Assignment#

The “Initialize Peer Review Assignment” page is the first item in the peer grading process which sets up the peer grading assignment.

_images/instructor_app_walkthrough_6.png

1. Name/group Settings: This section allows instructors to set the name of the peer review assignment as well as select an assignment group from Canvas.0s

2. Date settings: This section allows instructors to select the due date for their peer review assitnment. The original assignment date is pulled from Canvas and displayed as well.0s

  1. Rubric settings: This section allows users to select the rubric to use during peer reviewing.0s

4. Create assignment button: This button creates the peer review assignment with all of the course settings defined on this page.

Peer Matching#

_images/instructor_app_walkthrough_7.png

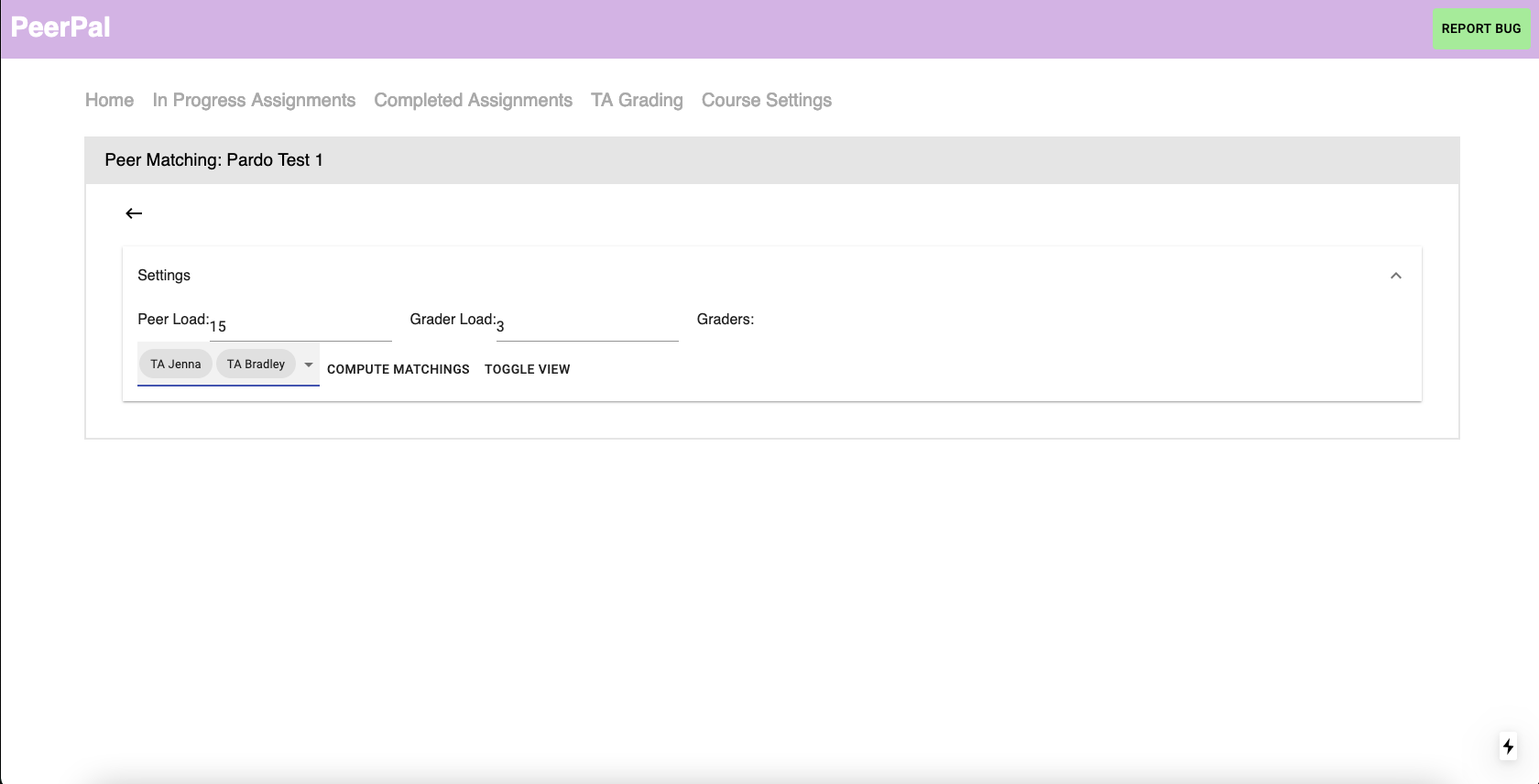

The “Peer Matching” page allows instructors to select the “Peer Load”, “Grader Load”, and “Graders” to use when running the Review Matching Algorithm. See the Algorithms section for more info on these settings.

Additonal Matches#

_images/instructor_app_walkthrough_8.png

This page displays students who haven’t completed their peer reviews. Instructors can create additional matchings by manually assigning unfinished peer reviews to TAs. Once additional matchings have been completed, instructors click the “CONFIRM NO NEW MATCHINGS NEEDED” button.
